Fusion Series

Fusion Series


The new and innovative Fusion Series Windows and Doors derives its name from combining Aluminum, Glass and Wood into a refined curtain wall system that allows the Architect to design without the many limiting factors of conventional curtain wall options. The Fusion series has an minimal aluminum exterior skin and And elegant wood interior that can be modified to meet any wall thickness or species of wood. Operating window and door sash utilize Tradewood Reflection series technology, which involves covering the exterior surface in 100% glass. These glass clad sash are co-planner to the adjacent Fixed glass and provide you the illusion that all the units are fixed, creating a continuous glass wall. Tradewood offer operating Reflection Series sash as large as 84” x 144” and fixed units up to 240” x 130”.

Designing with any of Tradewood’s Flexible Contemporary solutions allows your design intent to become a reality without compromise.

  • Elegant casement & awning windows, swing doors, lift & slide doors, folding doors, pivot doors
  • Dissimilar product group assemblies with complete design flexibility

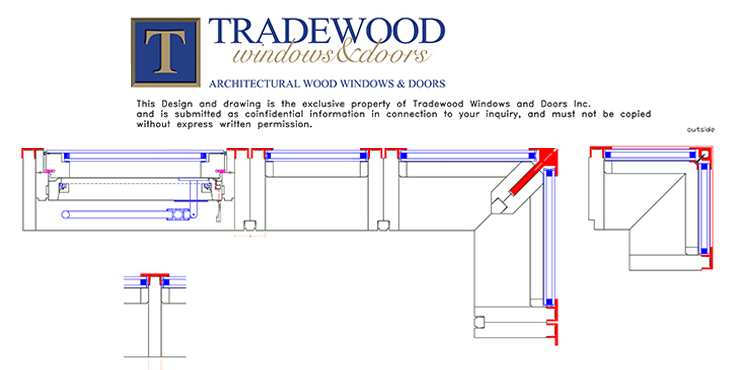

  • Unique 90 degree corner units glass, stainless steel of wood corners
  • Sleek crisp linear millwork
Contemporary Fusion
  • Frame joints are dadoed, sealed and screwed with stainless steel or brass fasteners
  • Frame depth as need to meet construction requirements
  • Common frame multiple units
  • Large variety of wood species, see options
  • Split wood species is available (interior and exterior are different)
  • Many muntin bar profiles to choose from, see options, custom profiles are available
  • All sizes and shapes
  • Bay, bow, box & corner configurations
  • Bent frame with bent glass
  • Bent frame with straight glass
  • Transoms, any shape
  • Multi-locking hardware on doors, lift & slide and folding
  • Casements with concealed multi-point locking hardware, with sleek handle
  • Push arm or roto-gear operators
  • Client specified hardware
  • Hardware is available in all finishes
  • Motorized hardware is available
  • Bronze thresholds on doors
  • Wood, aluminum, or Tradewood wood aluminum hybrid screens
  • Fiberglass, aluminum, bronze, stainless steel or enlighten invisible screen mesh
  • Roll screens
  • Test results available
  • Klima High Performance Ultra Low Volatile Organic Compounds Water-Based Exterior Paint and Stain Finishes
